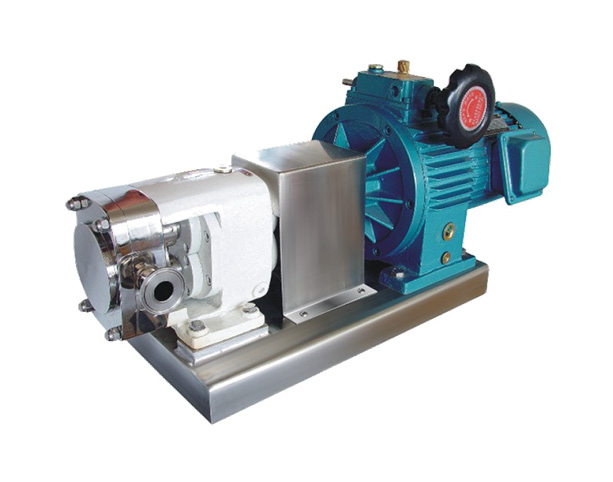

KRZZP Cam Rotor Pump
Description
PRODUCT INTRODUCTION

The cam rotor pump is specially designed to transport the high viscosity or material with grain softly , and used for hygiene and without fungus conditions. lt works on the material softly , the transport speed can be controled , it can also be used as metric instrument. All the parts contacting with the material are made by the SuS304 or SUS316L material ,the in-out switch join uses the internalsos Standard quickly opened joint, and comes up to the GMPstandar.

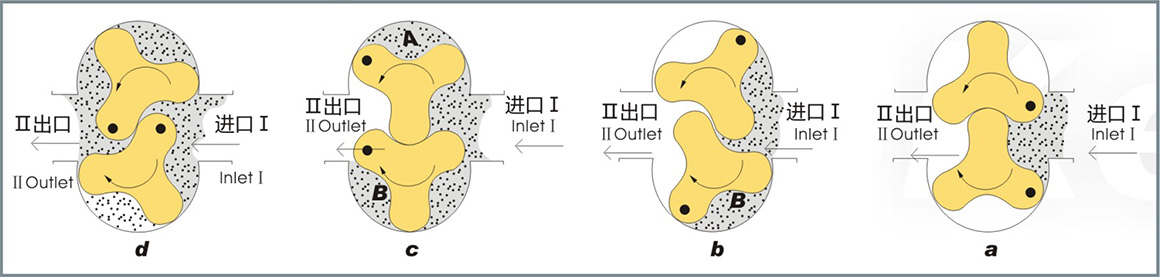

THE INSTRUCTION OF WORKING METHOD





MAIN TECHNIQUE PARAMETER
Type Flux (L) Rotate speed for stirring (rpm) Power (kw) Diameter
KRZZP-6 6 200-600 1.5 1"
KRZZP-8 8 200-600 1.5 1-1/2"
KRZZP-12 12 200-600 2.2 1-1/2"
KRZZP-20 20 200-600 3 1-1/2"
KRZZP-30 30 200-600 4 2"
KRZZP-36 36 200-600 5.5 2"
KRZZP-52 52 200-600 5.5 3"
KRZZP-66 66 200-600 7.5 3"
